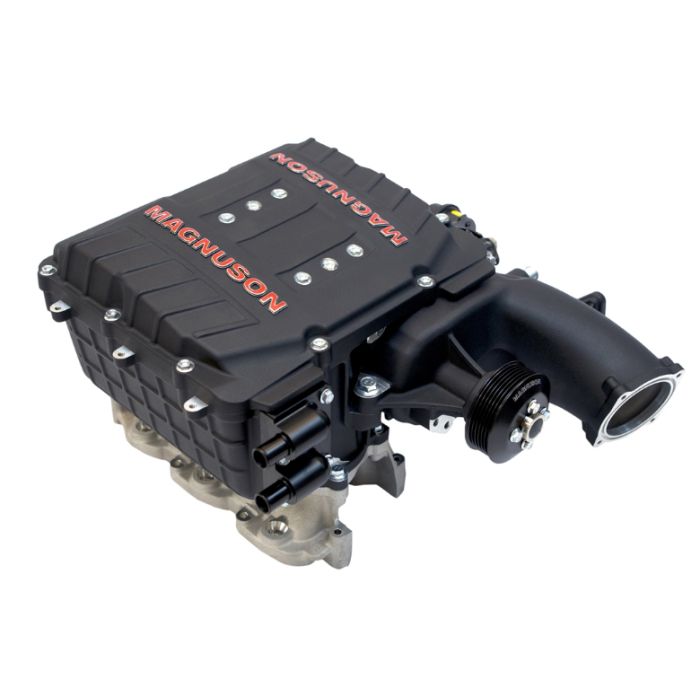

MAGNUSON SUPERCHARGER 18+ JL 3.6L
Turn your Wrangler JL or Gladiator JT into the Jeep it always deserved to be with the Magnuson TVS1900 Supercharger System for 2018–2025 models equipped with the 3.6L Pentastar V6. Designed specifically for non-eTorque applications, this complete bolt-on system delivers V8-like performance without sacrificing everyday drivability. By pairing Eaton's proven TVS1900 rotor pack with Magnuson's precision-engineered intake system, the supercharger operates at peak thermal efficiency across nearly the entire RPM band. The result is immediate throttle response, dramatically increased torque, and sustained power whether you're climbing technical obstacles, towing heavy loads, or merging onto the highway.
Every component has been engineered to meet OEM standards for fit, function, and long-term durability. The system incorporates a high-efficiency intercooler for consistent intake temperatures, a waterproof intercooler pump and a relocated high-mount alternator for improved reliability in wet conditions, precision high-flow fuel injectors, an integrated vacuum bypass valve for seamless drivability, and a maintenance-free TVS1900 supercharger that requires no external oil-cooling system. The included ECU calibration and unlock simplify installation, while the custom belt drive system ensures dependable operation in demanding environments. This kit is compatible with 2018–2025 Jeep Wrangler JL and 2020–2025 Jeep Gladiator JT models equipped with the 3.6L Pentastar V6, but it does not fit eTorque-equipped vehicles and 48V mild-hybrid systems.
Please Note:
- This kit is not compatible with Jeep Wrangler JL vehicles equipped with the optional eTorque V6 engine and 48V mild-hybrid system.
- Magnuson calibration and required HP Tuners credits are included.
- PCM unlock service is not included and must be purchased separately.
- Vehicles within this fitment range may be equipped with either a GPEC2/GPEC2A or GPEC5 PCM. Identify the PCM installed in your vehicle and use the appropriate HP Tuners unlock service before calibration.
- CARB certification applies to 2018–2020 Jeep Wrangler JL and 2020 Jeep Gladiator JT applications only.
- Not compatible with GPEC5 computers. Gladiators and Wranglers with build dates starting in August of 2021 started using this PCM.
Technical Specifications:
- Supercharger: Eaton TVS1900 Positive Displacement Roots-Type
- Rotor Design: Eaton TVS Four-Lobe Rotor Technology
- Peak Output: 440 HP / 380 lb-ft Torque (Crank)
- Torque Increase: Up to 59%
- Estimated Rear-Wheel Output: Approximately 372 RWHP
- Intercooler: High-Efficiency Air-to-Water System
- Fuel System: High-Flow Port Fuel Injectors Included
- Calibration: ECU Unlock & Magnuson Performance Calibration Included
- CARB EO: D-488-52 (Applicable 2018-2020 JL / 2020 JT)
- Warranty: 3-Year / 36,000-Mile Powertrain Warranty
- Vehicle Compatibility: 2018-2025 Wrangler JL & 2020-2025 Gladiator JT 3.6L (Non-eTorque)
- Not Compatible With: eTorque-equipped models or vehicles equipped with GPEC5 PCM
Add Up to 440 Horsepower: Transforms your 3.6L Pentastar V6 with up to 440 horsepower and 380 lb-ft of torque at the crank, delivering an incredible 59% increase in torque for stronger acceleration, improved towing, and enhanced off-road capability.
Eaton TVS1900 Supercharger Technology: Utilizes a large-capacity front-inlet, front-drive TVS1900 positive displacement Roots-style supercharger with Eaton TVS rotor technology for instant boost, exceptional thermal efficiency, and OEM-proven durability.
Engineered for Maximum Reliability: Features a high-efficiency air-to-water intercooler, waterproof intercooler pump, high-mount alternator, integrated vacuum bypass valve, high-flow port fuel injectors, and a custom-engineered belt drive system for dependable performance both on and off the trail.
Complete Bolt-On System: Includes the TVS1900 supercharger assembly, intake manifold, intercooler system, fuel injectors, ECU calibration with unlock, belt drive components, installation hardware, and everything required for a comprehensive installation with OEM-quality fit and finish.
50-State Legal & Backed by Warranty: CARB-approved (up to 2020 model year) for applicable model years and backed by Magnuson's 3-year/36,000-mile powertrain warranty for added confidence.
| Manufacturers Part Number | 01-19-36-003-BL |
|---|---|
| Product Name | MAGNUSON SUPERCHARGER 18+ JL 3.6L |
| Prop 65 Message | Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| CARB Certification | Racing Only (Can't sell in CA) |
| Length | 26 |
| Width | 26 |
| Depth | 16 |
| Weight | 60.000000 |
| Hazmat | No |
| Brand | Magnuson |
| Fuel Type | Gasoline |
| Engine | 3.6L Pentastar V-6 |
| Included Parts | 1 Supercharger System |
| Item Returns | This item can be returned |
