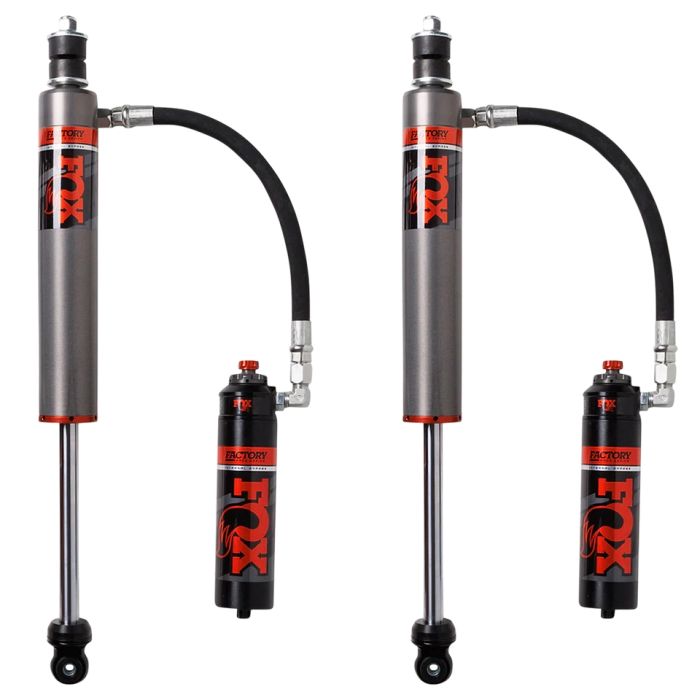

FACTORY RACE SERIES 2.5 INTERNAL BYPASS PIGGYBACK Rear (PAIR) 0-1.5in Lift 05-23 Toyota Tacoma
These Fox Racing Shox Factory Race Series Internal Bypass Piggyback Rear Shock Pairs deliver advanced rear suspension control for 2016–2023 Toyota Tacoma models. Built around a precision-machined internal bypass system, these shocks provide position-sensitive damping that transitions from compliant small-bump absorption to progressively firmer mid- and end-stroke control. The result is improved traction over uneven terrain and increased bottom-out resistance during high-load or high-speed off-road operation.
Featuring a 2.5-inch impact-extruded aluminum shock body and an integrated piggyback reservoir, these Factory Race Series shocks increase oil capacity and thermal stability to reduce fade during repeated compression cycles. Choose between shocks tuned for Tacoma applications with 0–1.5 inches of lift or 2–3 inches of lift to maintain proper suspension geometry and rebound balance. Hard-anodized aluminum construction and race-proven internal components ensure durability, corrosion resistance, and consistent damping performance in demanding environments.
Internal Bypass Damping: Internal bypass zones are precision-machined into the shock body to provide variable damping rates through the stroke, delivering controlled small-bump compliance and increased bottom-out resistance.
Burly Aluminum Shock Body: A large 2.5-inch impact-extruded aluminum body increases oil volume and surface area to improve heat dissipation and reduce performance fade under sustained load.
Piggyback Reservoir Design: The integrated piggyback reservoir expands fluid capacity and separates nitrogen charge from shock oil to maintain consistent damping characteristics during repeated compression cycles.
Application-Specific Tuning: Available in configurations engineered for 0–1.5 inch lift and 2–3 inch lift, ensuring optimized suspension geometry, rebound control, and ride balance.
Hard-Anodized Aluminum Components: Factory Race Series hard-anodized bodies and premium internal components enhance corrosion resistance, wear protection, and long-term structural integrity.
| Dropdown Value 1 | 0-1.5" Lift |
|---|---|
| Manufacturers Part Number | 883-26-123 |
| Product Name | FACTORY RACE SERIES 2.5 INTERNAL BYPASS PIGGYBACK Rear (PAIR) 0-1.5in Lift 05-23 Toyota Tacoma |
| Depth | 15 |
| Hazmat | No |
| Length | 33 |
| Weight | 36.000000 |
| Width | 15 |
| Prop 65 Message | This product can expose you to chemicals including chromium (hexavalent compounds), which are kwn to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
| Item Returns | This item can be returned |
