FOX FACTORY RACE 2.0 BS IFP JL JT FRONT
$829.95
In stock
SKU
16335-5062
Body: Threaded, impact extruded, black anodized, CNC machined 6061-T6 billet aluminum
Components: Black anodized, CNC machined 6061-T6 billet aluminum
Pad: Replaceable Delrin® strike pad
Shaft: Hard chrome plated 1-1/4" 4130 steel with Internal Floating Piston (IFP) for increased damping performance
Piston: Heavy-duty powdered steel
Valving: Tunable, velocity sensitive deburred valve shims
Seals: Redundant sealing pack system, main seal, wiper seal, scraper seal
Adjustments: Nitrogen pressure

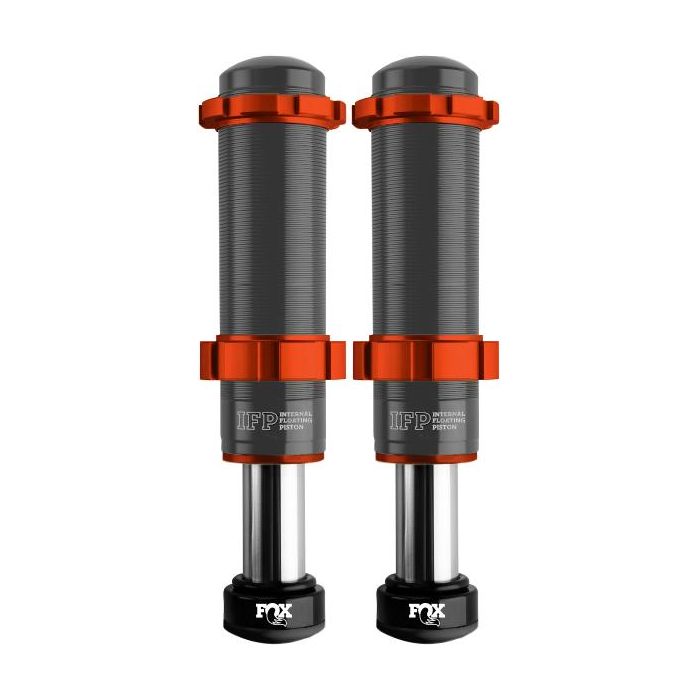

Inspired by it's off-road racing predecessors, the Fox Racing Shox Front 2.0 Factory Race Series IFP Bump Stops combines race proven technology with new, cutting-edge features to provide increased damping performance and bottom out control in the last few inches of suspension travel. The threaded body allows you to adjust the mounting height to fine-tune when the bump stop engages during up travel, preventing harsh bottom outs. An Internal Floating Piston (IFP) in the shaft separates the oil and nitrogen to prevent cavitation and bucking while the negative coil spring softens initial impacts and harsh top outs. The integrated FOX AIR VALVE (FAV) is located at the bottom of the shaft for easy access and is protected by the replaceable strike pad. Factory Series bump stops allow you to use every inch of suspension travel without harsh bottoming.
| Manufacturers Part Number | 883-02-167 |
|---|---|
| Product Name | FOX FACTORY RACE 2.0 BS IFP JL JT FRONT |
| Length | 19 |
| Width | 7 |
| Depth | 3 |
| Weight | 60.000000 |
| Hazmat | No |
| Color | Black |
| Front Shock Travel | 1.85 |
| Included Parts | Bump Stop - Pair |
| Lift Height Range | ALL |
| Location | Front |
| Front Collapsed Length | 8.183 |
| Front Extended Length | 10.037 |
| Item Returns | This item can be returned |
