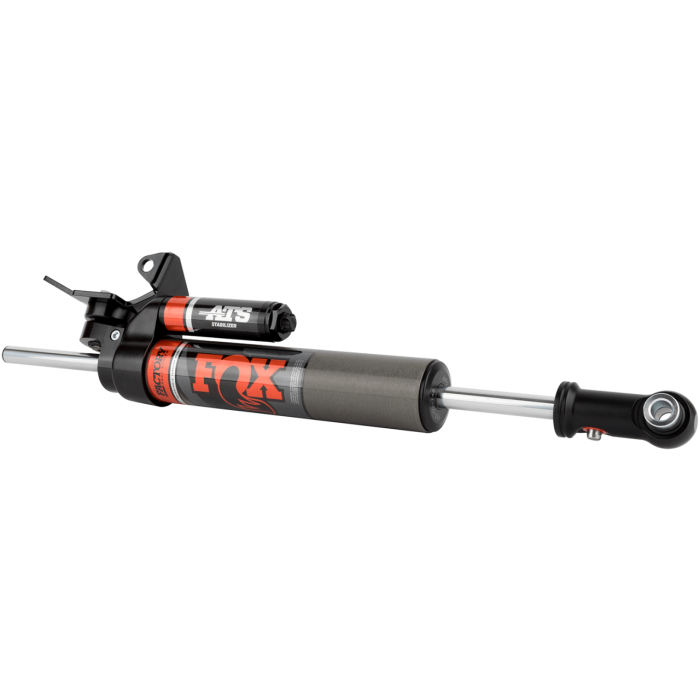

FOX 2.0 THROUGH SHAFT STABILIZER ATS JL
$524.95
In stock
SKU
16335-2015
Factory Race Series 2.0 ATS Steering Stabilizer Specs:
Shock Body Diameter: 2”
Shock Body Material: 6061-T6 Aluminum
Shock Body Finish: Clear Hard Anodized
Shock Component Material: 6061-T6 Aluminum
Shock Component Finish: Black Hard Anodized
Shaft Diameter: 5/8”
Shaft Material: Heat-Treated Steel Alloy
Shaft Finish: Hard Chrome Plating
Piston: Race-Developed High-Flow Design
Redundant Valve Seals: Main Seal, Wiper Seal, and Scraper Seal
Shock Oil: JM92 Advanced Suspension Fluid
Shock Gas: High Pressure Nitrogen
Bushing Material: Black Nitrile Rubber
Adjustable: 24 Clicks of Adjustability
Charge: Neutrally Charged
Extended Length: 23.20” (589.28mm)
Collapsed Length: 15.10” (383.54mm)
Travel: 8.10” (205.74mm)
Smooth out the ride in your Jeep Wrangler JL and Gladiator JT with the Fox Racing Shox Factory Race Series 2.0 ATS Steering Stabilizer. This direct fit steering stabilizer features an external adjuster with twenty-four points of adjustment, allowing it to be fine-tuned to your driving style. Install is 100% bolt-on, so no cutting, drilling, or other modifications are required. To avoid cavitation and fade, the Factory Race Series 2.0 Series ATS Steering Stabilizer utilizes Fox’s IFP (Internal Floating Piston) design. The external reservoir keeps shock oil separate from the high-pressure nitrogen. Unlike most steering stabilizers, the ATS is neutrally charged, so it will not push or pull your steering.
| Manufacturers Part Number | 983-02-148 |
|---|---|
| Product Name | FOX 2.0 THROUGH SHAFT STABILIZER ATS JL |
| Length | 28 |
| Width | 6 |
| Depth | 4 |
| Weight | 7.000000 |
| Hazmat | No |
| Features | Piggyback Reservoir |
| Front Shock Travel | 8.10 |
| Included Parts | Steering Stabilizer |
| Location | Steering Stabilizer |
| Front Collapsed Length | 15.100 |
| Front Extended Length | 23.200 |
| Item Returns | This item can be returned |
