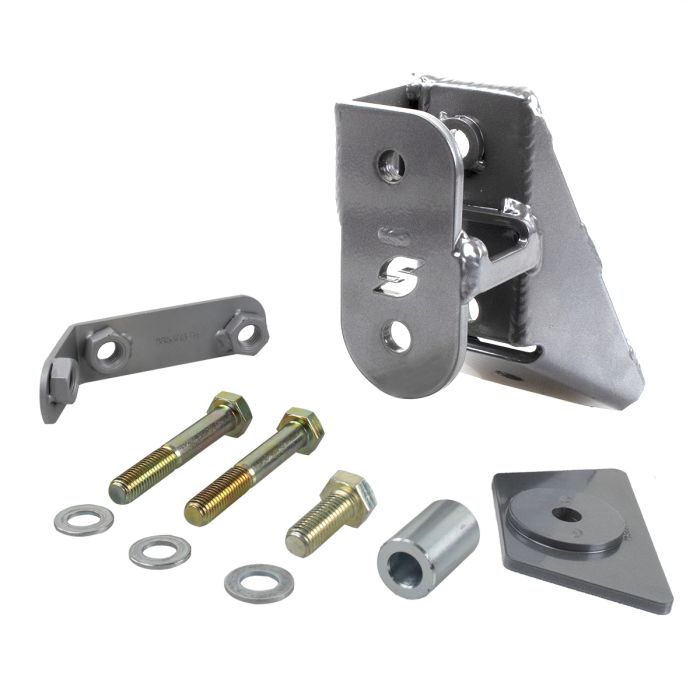

SYNERGY REAR TRACK BAR RELOCATION JL

Adding a suspension lift to a Jeep Wrangler creates room for larger tires and improves ground clearance, but it also changes the angles at which suspension components operate. One of the most important is the rear track bar, which helps locate the axle beneath the vehicle. As ride height increases, the factory track bar angle becomes steeper, potentially shifting the rear axle off-center and introducing unwanted side-to-side movement. The Synergy Manufacturing Rear Track Bar Relocation Bracket addresses these changes by correcting the axle-side mounting position and restoring more favorable suspension geometry.

Designed for the 2018 and newer Jeep Wrangler JL and JL Unlimited, this bracket raises the rear track bar mounting point by 3.25 inches. That change reduces the track bar's operating angle while raising the vehicle's rear roll center. The result is improved suspension stability and reduced body roll, particularly on lifted Wranglers that exhibit the familiar rear-end wag or unsettled handling associated with steep track bar angles.

Another important advantage is the ability to recenter the rear axle without immediately replacing the factory track bar. On Jeeps equipped with approximately 2–3 inches of suspension lift, Synergy's relocation bracket helps restore axle positioning using the original track bar. This makes it an effective geometry correction upgrade for owners who want to improve the behavior of an existing suspension system. For vehicles with 3 inches or more of lift, Synergy recommends pairing the bracket with an adjustable rear track bar for additional positioning control.

Correct suspension geometry becomes even more important when increasing wheel travel. As a lifted Wrangler's rear suspension cycles through compression and extension, the relationship between the track bar, axle, driveshaft, and surrounding components changes. The Synergy Rear Track Bar Relocation Bracket helps prevent interference between the rear driveshaft and gas tank skid plate when used with compatible long-travel shocks. This allows properly configured suspension systems to take better advantage of their available travel without unnecessary clearance restrictions.

Synergy builds the bracket from a combination of 3/16-inch and 1/4-inch steel, using precision laser cutting and CNC forming for consistent fitment and strength. Rather than relying on a single attachment point, the design connects to the original axle-side track bar bracket in multiple locations, reinforcing the mounting assembly while distributing suspension loads across a larger area. An abrasion-resistant powder coat finish provides additional protection against moisture, corrosion, and the dirt and debris encountered during off-road driving.

For Wrangler owners who want their suspension upgrades to deliver more than additional height, the Synergy Manufacturing Rear Track Bar Relocation Bracket is an important component of a properly engineered lift system. By improving rear axle positioning, correcting track bar geometry, and raising the rear roll center, it helps bring stability and predictable handling back into the equation. Whether you're building a capable daily driver or a Wrangler equipped for demanding trail use, this bracket addresses the suspension fundamentals that make a lifted Jeep perform as well as it looks.

Suspension Requirements: Requires a minimum of 2 inches of bump stop spacing. Designed to help center the rear axle with 2–3 inches of suspension lift using the factory rear track bar. An adjustable rear track bar is recommended for lifts of 3 inches or more.

Installation Notes: Bolt-on installation with basic hand tools on standard gasoline-powered Wrangler JL applications. No cutting or drilling is required. EcoDiesel models require relocation of the axle breather or welding the bracket in place instead of using the standard bolt-on arrangement.
