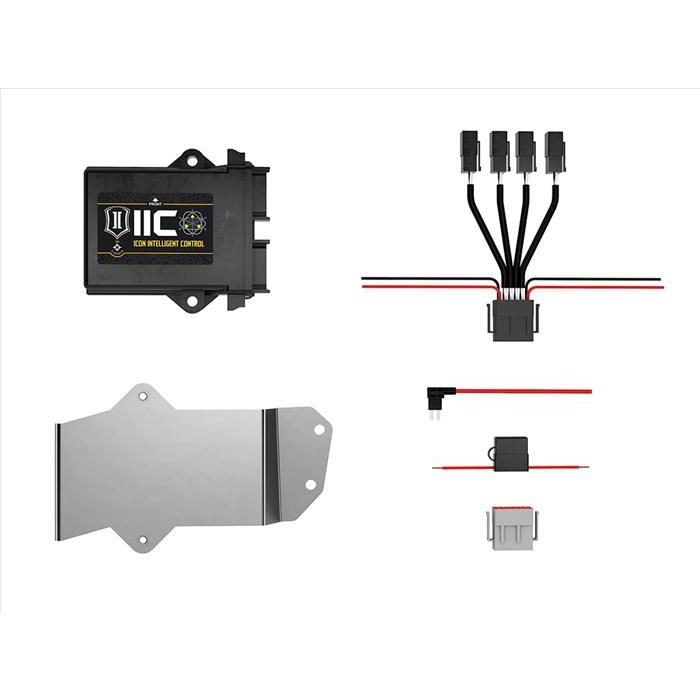

18-UP JEEP JL / 20-UP JEEP JT IIC INSTALL KIT
The ICON Vehicle Dynamics Intelligent Control (IIC) for Jeep Wrangler JL and Gladiator the computer that monitors, analyzes, and processes data in real time and works in conjunction of other components in the suspension to predict terrain and wheel positions and adjust. The IIC has the capability to collect information at over 1000 times per second, process the data, then deliver those changes to Compression Damping Electronic Valve (CDEV) in the shock absorbers in under 40 milliseconds. IIC also works as a data driver to connect the user to ICON’s proprietary mobile App interface for monitoring and adjusting shock settings. The IIC App brings all this technology together by offering a user-friendly interface to monitor, record, and adjust the system’s performance via Bluetooth connection. Users can easily alter the shocks’ baseline settings for firmness, as well as adjust the sensitivity of vertical “G-Boost” and lateral “Corner Boost” with a few simple taps from their favorite device. Installation is clean and easy by using specific mounting brackets, hardware and wiring harnesses in your Wrangler JL or Gladiator JT.
TECH NOTE: Also requires installation of CDEV front shocks (Part # 27821EP) and CDEV rear shocks (Part # 27726EP or 27727EP)
TECH NOTE: Only compatible with models equipped with 3.6L V6 gasoline engine. Not compatible with Wranglers equipped with 3.6L V6 eTorque engine.
Real Time Adjustments: Offers selectable active shock damping adjustment as well as manual adjustment of baseline settings without exiting the vehicle. Onboard sensors monitor G-forces and movement of vehicle chassis
App Presets: Mobile app offers preconfigured “Drive Modes” as well as the ability to create custom presets.
Keeps Track: Also functions as a data logger for time, speed, distance, and G-force allowing you to record data from your trips.
| Manufacturers Part Number | 23502 |
|---|---|
| Product Name | 18-UP JEEP JL / 20-UP JEEP JT IIC INSTALL KIT |
| Prop 65 Message | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| CARB Certification | CARB Not Required |
| Length | 19 |
| Width | 9 |
| Depth | 5 |
| Weight | 4.000000 |
| Hazmat | No |
| Brand | ICON Vehicle Dynamics |
| Fuel Type | Gasoline |
| Engine | 3.6L Pentastar V-6 |
| Item Returns | This item can be returned |
