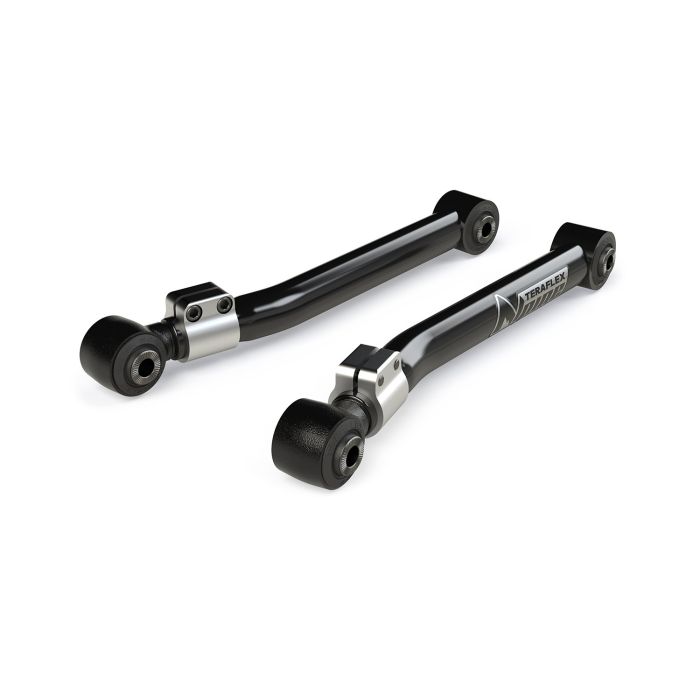

TERAFLEX ALPINE RR UPPER FLEXARMS JL
$357.99
In stock
SKU
16196-0028
Fully Adjustable: Teraflex’s Alpine Flexarms allow you to fine tune your caster and pinion angle angle while re-centering the axles under your Jeep Wrangler JL. The factory style bushings are designed to reduce noise, vibration, and harshness (NVH).
Heavy Duty Construction: These control arms are made from durable Drawn Over Mandrel (DOM) tubing which is finished with black e-dipped coating. The adjustment clamp collars are made from anodized 6061-T6 aluminum.
Front Upper Control Arm Specs:
- Lift Height Range: 0-4.5”
- Tube Diameter: 1-5/8” (42mm)
- Tube Wall Thickness 0.157” (4mm)
- Factory Length: 20.185” (512.699mm)
- Minimum Adjusted Length: 20” (508mm)
- Maximum Adjusted Length: 21" (533.4mm)
Front Lower Control Arm Specs:
- Lift Height Range: 0-4.5”
- Tube Diameter: 1-5/8” (42mm)
- Tube Wall Thickness 0.157” (4mm)
- Factory Length: 24” (609.6mm)
- Minimum Adjusted Length: 24” (609.6mm)
- Maximum Adjusted Length: 25.25” (641.35mm)
Rear Upper Control Arm Specs:
- Lift Height Range: 0-4.5”
- Tube Diameter: 1-5/8” (42mm)
- Tube Wall Thickness 0.157” (4mm)
- Factory Length: 17.425" (442.595mm)
- Minimum Adjusted Length: 17-3/8" (441.325mm)
- Maximum Adjusted Length: 18-1/2" (469.90mm)
Rear Lower Control Arm Specs:
- Lift Height Range: 0-4.5”
- Tube Diameter: 1-5/8” (42mm)
- Tube Wall Thickness 0.157” (4mm)
- Factory Length: 19-3/4” (501.65mm)
- Minimum Adjusted Length: 19-13/16” (503.24mm)
- Maximum Adjusted Length: 21-1/16” (535.99mm)
If you are looking to change out your factory length flexarms the TeraFlex Adjustable Alpine Control Arm Kit for Jeep JL Wranglers with a 0" to 4-1/2" lift kit are perfect Adjustable control arms that provide top-of-the-line performance. These Alpine Flexarms are designed to give your Jeep Wrangler JL the ultimate off-road articulation and ride comfort. These Fully-adjustable Alpine Flexarm control arms give precise and commanding driving position with attention to pinion & caster angles. The heavy-duty Control arms will correct sag and sway for a proper suspension alignment. They require zero maintenance and are easy to install. Teraflex control arms are sold as pairs or a set of (8) and carry a limited lifetime warranty.
| Manufacturers Part Number | 1416560 |
|---|---|
| Product Name | TERAFLEX ALPINE RR UPPER FLEXARMS JL |
| Dropdown Value 1 | Rear Upper |
| Prop 65 Message | This product can expose you to chemicals including chromium (hexavalent compounds), which are kwn to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
| Length | 21 |
| Width | 7 |
| Depth | 3 |
| Weight | 16.000000 |
| Hazmat | No |
| Brand | Teraflex |
| Control Arm Type | Upper Control Arms |
| Features | Adjustable Control Arms |
| Included Parts |
or
|
| Lift Height | 0.0, 0.00, 0.5, 0.50, 1.0, 1.00, 1, 1.50, 1.5, 2, 2.0, 2.00, 2.50, 2.5, 3.00, 3.0, 3.5, 3.50, 4.0, 4.00, 4.5, 4.50 |
| Lift Height Range | 0 - 4.5 inch |
| Location | Rear |
