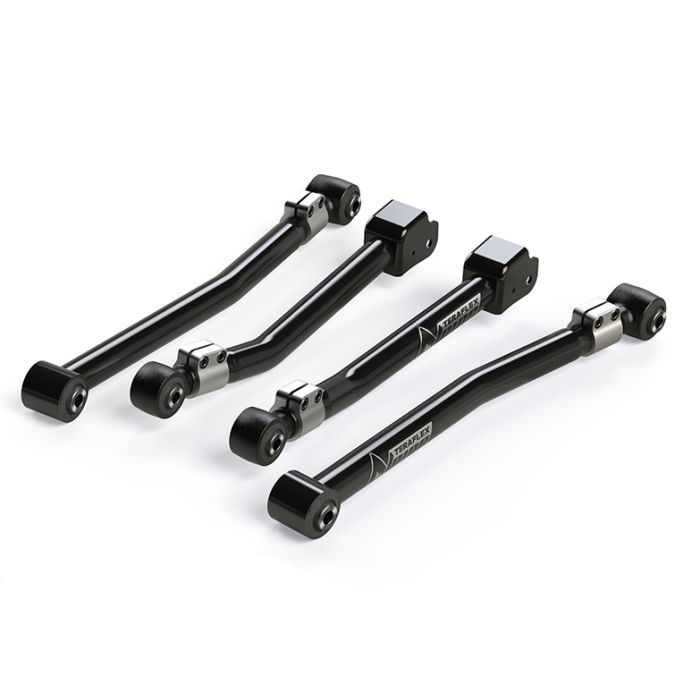

TERA ALPINE FR 4PC LONG ARMS JK
$835.99
In stock
SKU
16196-0016
- Tube Diameter & Wall = 1-5/8” x 0.157” (42mm x 4mm)
- Factory Length = 22-5/8”
- Min. Length = 22-3/4”
- Max. Length = 24”
- Both Ends = 9/16” (14mm) Bolt
- Thread = 1-1/4”-12 UNF
- Both Bushings = # 611011
- Tube Diameter & Wall: 1-5/8” X 0.157” (42mm X 4mm)
- Factory Length = 18-3/4”
- Min. Length = 27-3/8”
- Max. Length = 28-7/8”
- Axle End = 7/16” (12mm) Bolt
- Frame End = 9/16” (14mm) Bolt
- Thread = 1-1/4”-12 UNF
- Axle Bushing = # 611014
Lower Flex Arm Specs:
Upper Flex Arm Specs:
Durable: 1-5/8” x 0.157” (42mm x 4mm) wall DOM (Drawn Over Mandrel) tube provides maximum strength.
Fully-Adjustable: Alpine Flexarm control arms optimize pinion & caster angles, & tune anti-squat geometry for proper suspension alignment. Re-centers axles in the wheel well for proper suspension movement or can be used to increase wheelbase.
High-Quality Components: High-quality factory style bushings provide excellent noise, vibration, & harshness (NVH) damping & ride quality characteristics w/ zero maintenance. Premium black e-dipped coating provides superior durability & corrosion resistance on tube & forged rod end housing. Zero maintenance forged threaded joints equate for a smooth quiet flex.
Teraflex Alpine Front Adjustable Long Arms are designed to give your Jeep Wrangler JK the ultimate off-road articulation and ride comfort. These Fully-adjustable Alpine Flexarm control arms give precise and commanding driving position with attention to pinion & caster angles. The heavy-duty Control arms will correct sag and sway for a proper suspension alignment. They require zero maintenance and are easy to install. Teraflex Flexarms are sold as a set of (4) and carry a limited lifetime warranty.
| Manufacturers Part Number | 1315510 |
|---|---|
| Product Name | TERA ALPINE FR 4PC LONG ARMS JK |
| Prop 65 Message | Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Length | 39 |
| Width | 9 |
| Depth | 7 |
| Weight | 50.000000 |
| Hazmat | No |
| Brand | Teraflex |
| Control Arm Type | Lower Control Arms, Upper Control Arms |
| Features | Adjustable Control Arms |
| Included Parts |
|
| Lift Height Range | 2-4 inch |
| Location | Front, Rear |
| Item Returns | This item can be returned |
