MOPAR 4IN LIFT W/PER SHK 07-11 JK 4DR
$1,591.24
In stock
SKU
16170-1005
- Ideally rated coil springs, combined with specially tuned hydraulic Performance Series shocks.
- Adjustable alignment cams (at lower link arms-to-axle attachment points) correct caster angle.
- Front body / frame alignment corrected by an adjustable track bar; the rear is handled via a track bar relocation bracket with integrated brace.
- Correct length stabilizer bar links with Heim ends.
- Brake hose and parking brake cable relocation brackets.
- Replacement high-clearance, high capacity steering stabilizer kit.
- Works with all vehicle systems including the Electronic Stability Program.
Wheel and Tire Recommendations
NOTE: The use of 35 or larger diameter tires may require modification to Mopar rock rails, and certain model Mopar bumpers, for adequate clearance.Tire Diameter: 33 to 37
Tire Width: No greater than 13.5
NOTE: Tires wider than 10.5 may require wheels with dimensions as follows:
Wheel Diameter: No less than 17
Wheel Width: 8- 9
Wheel Back Spacing: 3.25 to 4.75.
As backspacing dimension decreases, track width and stability increases.
This complete 4 lift kit complements our very popular 2 kit and 4.5 Long Arm lift. The 4 kit provides everything needed to clear up to 37 tires. Now with most lift kits you have a choice of either Mopar Performance hydraulic shock absorbers (white enamel finish), or Mopar Premium Performance Bilstein gas shocks (silver Zinc). The 4 Short Arm kits also include a replacement high-clearance, high capacity steering stabilizer kit.
Check out the optional AEV ProCAL Module, a great finishing touch to any lift kit as it can reprogram your vehicles computer compensating for gear ratio and tire size changes after lift kit installation not to mention many other additional features.
Check out the optional AEV ProCAL Module, a great finishing touch to any lift kit as it can reprogram your vehicles computer compensating for gear ratio and tire size changes after lift kit installation not to mention many other additional features.
| Product Name | MOPAR 4IN LIFT W/PER SHK 07-11 JK 4DR |
|---|---|
| Dropdown Value 1 | MOPAR 4IN LIFT W/PER SHK 07-11 JK 4DR |
| Prop 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Length | 0 |
| Width | 0 |
| Depth | 0 |
| Weight | 100.000000 |
| Hazmat | No |
| Brand | Mopar |

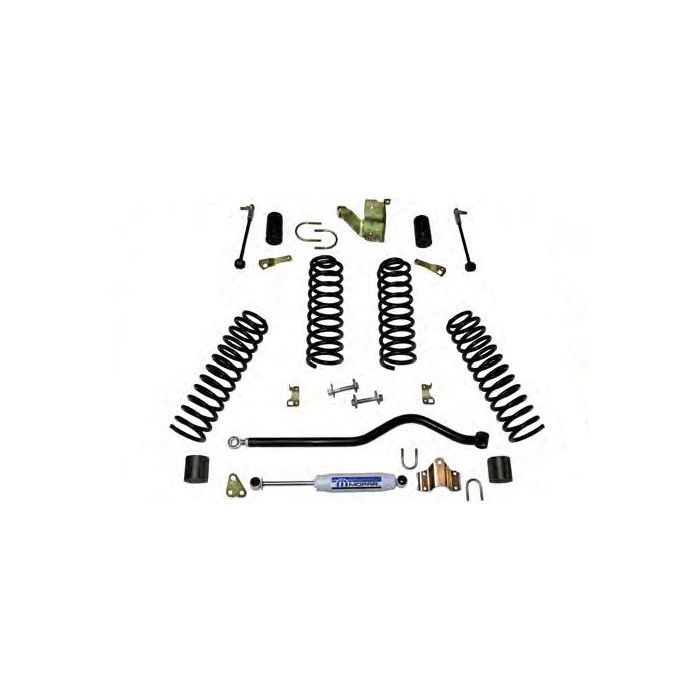

| Included Parts | Front Coil Springs Rear Coil Springs Cam Bolts Front Bump Stops Rear Bump Stops Front Track Bar Rear Track Bar Bracket Rear Sway Bar Links Brake Line Brackets Steering Stabilizer Kit Performance Shocks |
| Max Tire Size | 37 |
| Shocks Included | With Shocks |
| Item Returns | This item can be returned |
