JKS RR ADJUSTABLE SPRING MNTS 07-09 JK
$182.35
In stock
SKU
16156-0300
Premium grade 1/2" U-bolts allow easy spring mount adjustment and installation without the need for any welding. In addition, the U-bolts feature rolled threads (20 per inch) for exceptional clamping strength and grade 5 locking nuts for extra security. Anti-corrosive coatings protect all parts and hardware from rust and deterioration.
Adjustable Spring Mounts are pre-drilled to accept JKS Coil Spring Retainers, an optional accessory that prevents the rear coil springs from becoming unseated. The product is also compatible with our latest Rear Trackbar Brace, which now features special U-bolt slots intended specifically to accommodate Adjustable Spring Mounts on both LHD and RHD applications.
Adjustable Spring Mounts are pre-drilled to accept JKS Coil Spring Retainers, an optional accessory that prevents the rear coil springs from becoming unseated. The product is also compatible with our latest Rear Trackbar Brace, which now features special U-bolt slots intended specifically to accommodate Adjustable Spring Mounts on both LHD and RHD applications.
Product Features
- Establishes proper alignment of upper and lower spring mounts on vehicles with rotated axle housing
- Prevents coil springs from bowing outward as suspension compresses
- Eliminates interference between coil springs and rear track bar
- Bolt-on design requires no welding for easy setup and installation
- Compatible with Coil Spring Retainers and Rear Trackbar Brace available separately from JKS
Until recently, correcting rear spring mount alignment on vehicles equipped with a CV driveshaft has been a difficult challenge for JK owners. Fortunately, JKS Manufacturing now offers a solution to this problem that is both simple and affordable. Adjustable Spring Mounts install directly in place of the factory lower coil mounts on the rear axle housing. The folded, heavy-gauge steel brackets form extremely strong mounting pads that are easily adjusted to match the angle of the upper spring mounts. As a result, the coil springs are able to function as originally intended and interference with the rear track bar is eliminated.
| Dropdown Value 1 | JKS RR ADJUSTABLE SPRING MNTS 07-09 JK |
|---|---|
| Manufacturers Part Number | JKS2400 |
| Product Name | JKS RR ADJUSTABLE SPRING MNTS 07-09 JK |
| Depth | 5 |
| Hazmat | No |
| Length | 10 |
| Weight | 11.000000 |
| Width | 7 |
| Prop 65 Message | Warning, Cancer and Reproductive Harm www.P65warnings.ca.gov |
| Brand | JKS Manufacturing |

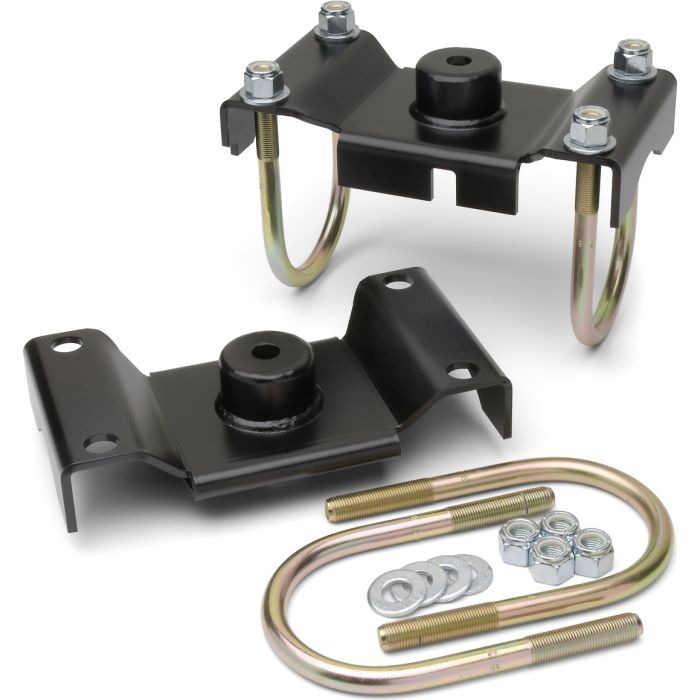

| Included Parts | Spring Mounts U Bolts Washers Ny-locking Nuts |
| Item Returns | This item can be returned |
