Rear B8 5100 Shocks / Struts Toyota Tacoma 2016-2023

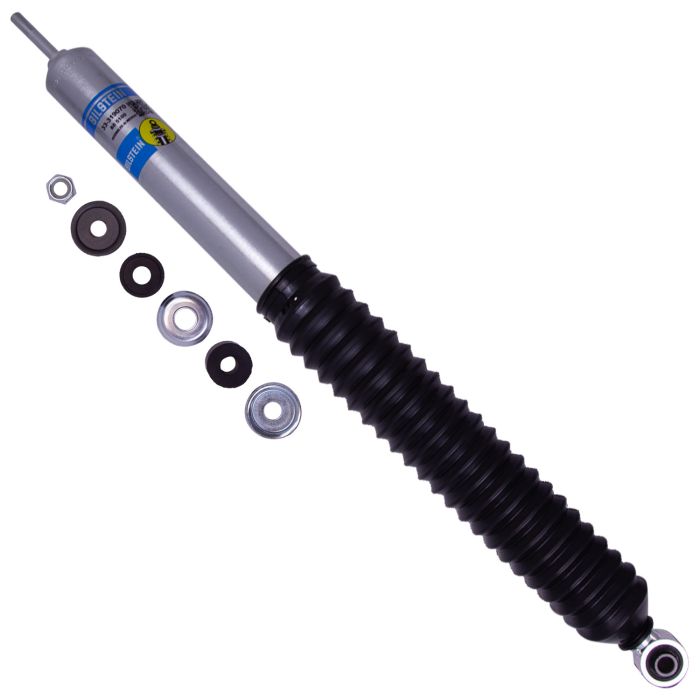

Bilstein B8 5100 Rear Shock Absorber for 16-23 Toyota Tacoma is designed to improve ride control and overall suspension performance by combining a monotube shock design with Bilstein’s proven digressive valving, which adapts to varying road and off-road conditions. This makes it a strong upgrade for drivers looking to enhance stability and handling without overcomplicating their setup.
Built for durability, the shock features a corrosion-resistant zinc-plated finish and is tuned to perform with both stock and lifted suspensions, making it a versatile option for a wide range of Tacoma builds. The result is a more controlled and predictable ride, offering improved comfort and performance for daily driving and off-road use alike.
Specifications:
Collapsed Length (in): 16.48
Extended Length (in): 26.38
Collapsed Length (mm): 418.5
Extended Length (mm): 670.0
Stroke/travel Length (in): 9.90
Lower Mount Type: Eye 12mm
Upper Mount Type: Stem
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Body Design: Smooth Body (Non-coilover)
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Boot Included: Black Bellows
Replacement Mounting Kit: B4-KT1-Z008A00
Spring Seat Included: No
Shaft Diameter: 14mm
Adjustable Damping: Non-AdjustableCollapsed Length (in): 16.48
Extended Length (in): 26.38
Collapsed Length (mm): 418.5
Extended Length (mm): 670.0
Stroke/travel Length (in): 9.90
Lower Mount Type: Eye 12mm
Upper Mount Type: Stem
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Body Design: Smooth Body (Non-coilover)
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Boot Included: Black Bellows
Spring Seat Included: No
Shaft Diameter: 14mm
Adjustable Damping: Non-Adjustable
Bilstein B8 5100 monotube design: Provides consistent damping performance with improved heat dissipation over twin-tube shocks.
Digressive valving technology: Automatically adjusts to changing road conditions for enhanced control and ride comfort.
Lift-compatible performance: Designed to work with stock and lifted applications while maintaining proper damping characteristics.
Durable zinc-plated finish: Helps resist corrosion and extend shock life in harsh environments.
Vehicle-specific Tacoma fitment: Engineered for 2016-2023 Toyota Tacoma models to ensure proper installation and performance.
| Manufacturers Part Number | 33-319070 |
|---|---|
| Product Name | Rear B8 5100 Shocks / Struts Toyota Tacoma 2016-2023 |
| Depth | 3 |
| Hazmat | No |
| Length | 27 |
| Weight | 6.000000 |
| Width | 3 |
| Brand | Bilstein |
