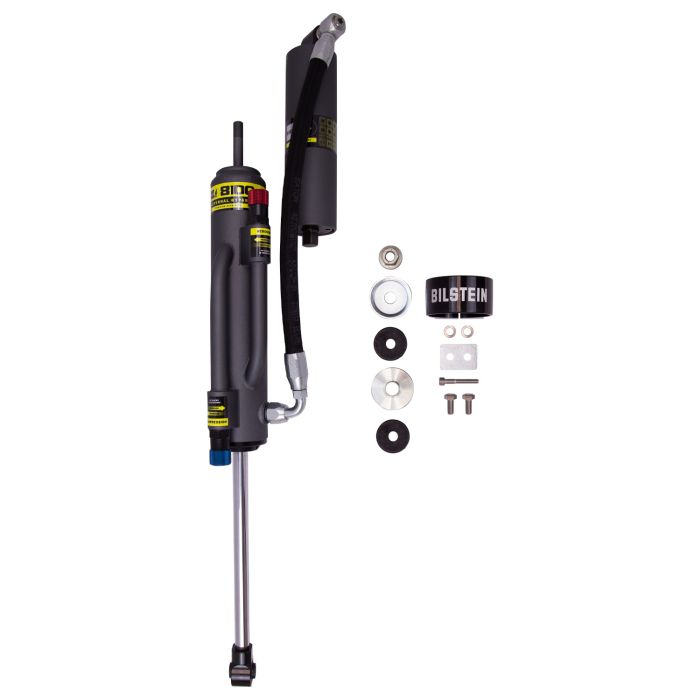

Rear B8 8100 (Bypass) Shocks / Struts Toyota Tacoma 2005-2023 - Driver Side

Bilstein B8 8100 Bypass Rear Shock Absorbers for 05-23 Toyota Tacoma are designed to deliver a high level of off-road performance by using an external bypass shock design that allows for position-sensitive damping control, giving the suspension more precision across different stages of travel. With dedicated driver- and passenger-side units, these shocks are engineered for proper fitment and balanced performance.

Built with a large-body monotube construction, the 8100 series is designed to handle extreme conditions by improving heat dissipation and maintaining consistent damping even under heavy use. The result is a more controlled and predictable ride over rough terrain, making these shocks a strong choice for Tacoma owners looking to push their suspension performance further in demanding off-road environments.

Specifications:

Collapsed Length (in): 14.25

Extended Length (in): 23.94

Collapsed Length (mm): 362.0

Extended Length (mm): 608.0

Lower Mount Type: Eye 12mm

Upper Mount Type: Stem

Internal Design: Monotube

Finish: EVO Grey

Reservoir: Yes

Body Design: Bypass Body (Non-Coilover)

Body Diameter (od): 2.65 in.

Piston Diameter: 60mm

Boot Included: No

Spring Seat Included: No

Shaft Diameter: 18mm

Adjustable Damping: Double Adjustable Compression and Rebound with Click Adjuster Knobs
