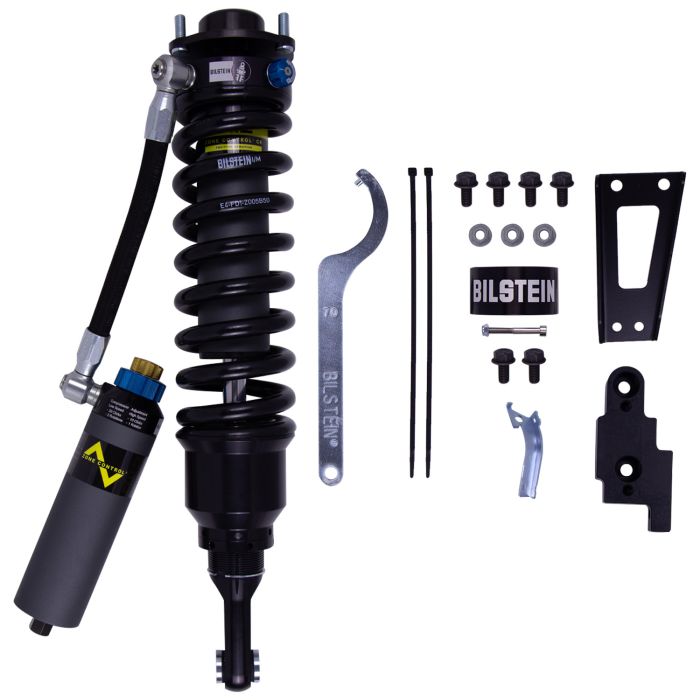

Front B8 8112 (ZoneControl CR DSA+) Shocks / Struts Toyota Tacoma 2005-2023

Bilstein B8 8112 ZoneControl CR DSA+ Front Coilovers for 05-23 Toyota Tacoma are designed to deliver a premium level of suspension performance by combining advanced damping technology with a large-body coilover design that can handle demanding conditions. With dedicated driver- and passenger-side units, these coilovers are engineered to ensure proper fitment while maximizing suspension efficiency.

Using Bilstein’s ZoneControl CR with DSA+ technology, these coilovers offer position-sensitive damping that adapts throughout the shock’s travel, helping maintain control, comfort, and responsiveness across a wide range of terrain. The result is a highly capable and refined front suspension system, making it a strong choice for Tacoma owners looking for top-tier performance both on the road and in more aggressive off-road environments.

Specifications:

Collapsed Length (in): 17.43

Extended Length (in): 22.39

Collapsed Length (mm): 442.6

Extended Length (mm): 568.8

Lower Mount Type: Eye 15.88mm

Upper Mount Type: Special

Internal Design: Monotube

Finish: Dampers: EVO Grey/Springs: Black

Reservoir: Yes

Body Design: Smooth Body (Coilover)

Body Diameter (od): 2.65 in.

Piston Diameter: 60mm

Body Material: Steel

Boot Included: No

Spring Seat Included: Yes

Front Main Spring Rate (lbs/in): 600 lbs

Shaft Diameter (mm): 22.0

Adjustable Damping: Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)

Aftermarket Upper Arms Required: Yes
