10IN COMPVR SUB BOX 07-10 JK
Kicker CompVR Sub Woofer (Part # 43CVR102) Specs:
Speaker Size: 10in (25cm)
Mounting Diameter: 9-3/16in (23.3cm)
Mounting Depth: 5-1/2in (14cm)
Dual Voice Coil (DVC): 2ohms Each
Impedance: 4ohms Total
Peak Power: 700 Watts
Root Mean Squared Power (RMS): 350 Watts
Sensitivity (1w/1m): 83.6dB
Kicker CXA400.1 Amplifier (Part # 46CXA4001) Specs:
Power @ 4ohms: 150 watts
Dimensions: 2-3/8in x 6-3/4in x 8-1/8in (5.9cm x 17cm x 20.6cm)
Frequency Response (+0/-1dB): 25-200Hz
Low Lever Input Sensitivity: 250mV-10V
High Lever Input Sensitivity:1V-40V
Variable Lo-pass Active Crossover: 50Hz–200Hz @ 12dB/octave
Subsonic Filter: 25Hz @24dB/octave
Variable KickEQ™ Boost: 0-6dB @40Hz

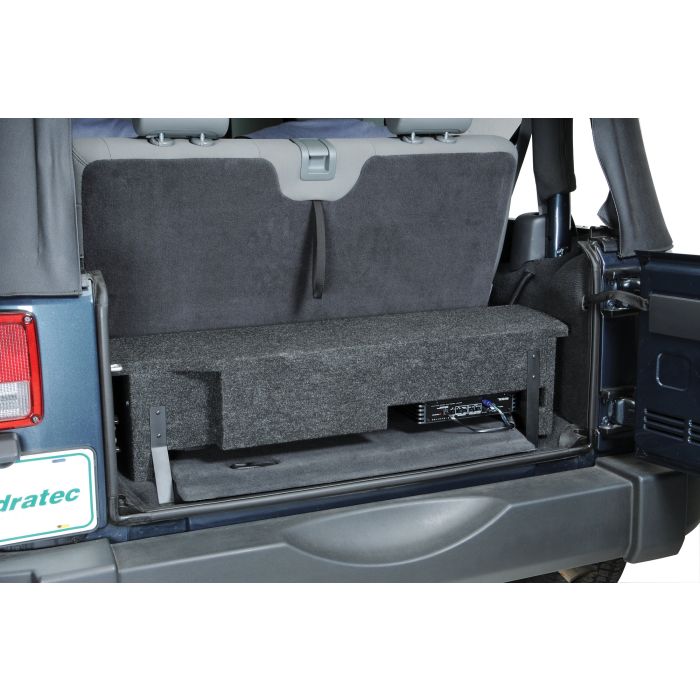

The Quadratec Custom Rear Subwoofer Kit with 10" Kicker CompVR Speaker & CXA400.1 Amp firmly mounts to the rear floor section of your Jeep Wrangler JK. Steel brackets suspend the sub woofer above the rear storage compartment and jack to allow for easy access. Kits come complete with all mounting hardware and specialized wiring for a complete plug-n-play installation. Wiring harnesses are available to either fit the factor stereo or an aftermarket head unit. This is the ultimate upgrade to the factory sound system, and is designed specifically for Jeeps without factory subs. These kits include a Kicker CompVR sub, a Kicker CXA400.1 amplifier, and a Kicker CXARC bass controller. The sub woofer speaker fires downwards onto the floor area for maximum bass, and a sound that you can feel. The solid MDF board enclosures and top deck are fully carpeted. Detailed instructions are included for a simple, flawless installation. Assembled in USA.
This Kit is NOT Compatible with 2011 to 2018 Wranglers with Factory Sub Woofers
| Manufacturers Part Number | JKSCVR-A |
|---|---|
| Product Name | 10IN COMPVR SUB BOX 07-10 JK |
| Dropdown Value 1 | 07-10 Wrangler JK |
| Dropdown Value 2 | Aftermarket Stereo |
| Length | 0 |
| Width | 0 |
| Depth | 0 |
| Weight | 50.000000 |
| Hazmat | No |
| Brand | Quadratec |
| Included Parts |
|
| Location | Cargo |
| Size | 10" |
| Item Returns | This item can be returned |
