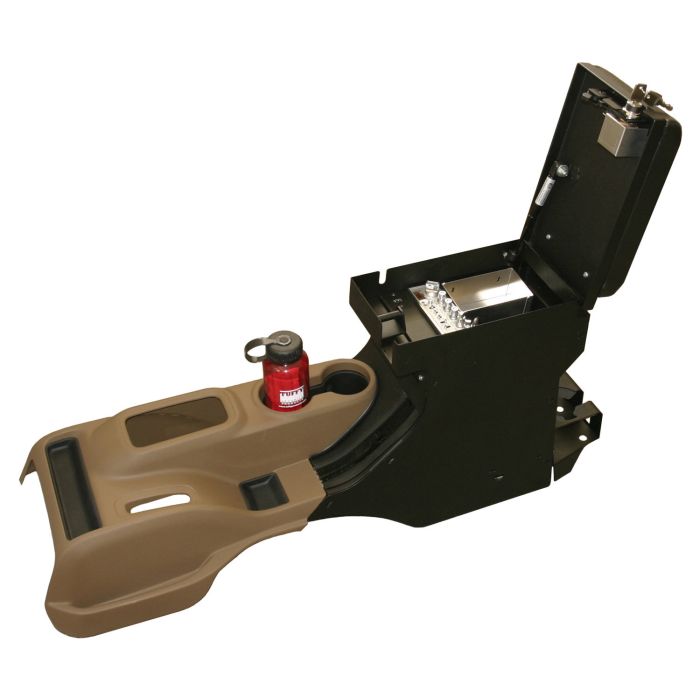

TUFFY REAR HALF SECUR CNSL 11-UP JK
- Patented Pry-Guard II locking system with a 1/4" steel latch which enables the lid to be latched closed without locking
- Patented Anti-twist push button lock system with a 10 tumbler double bitted security key containing built in weather seals
- Gas strut supports lid
- Removable tray
- Wire routing notch
- Accommodates all factory options such as 12V power suppy, 115V plug, and USB port
- Durable texture powder coat
- Grade 8 mounting hardware provided
- Electronics mounting bracket, or use included divider bracket for more storage
- 75% more secure storage space than factory console
- Rear drink holders with anti-rattle drink fingers
- Includes bracket for rear power window switches
- Weather resistant lid design incorporates an exclusive Pin-Lock hinge security system with built in lid stop
- Full length marine grade vinyl armrest
Part #274 Colors: 01
Exterior Dimensions: 33"L x 8 1/4"W (top), 10 1/8"W (bottom) x 19 1/4"H (including armrest)
Interior Dimensions: 11"L x 7 1/2"W x 12 1/2"H
Electronics Compartment: Comes pre-cut for DIN Mount stereo 7 1/4" x 2 3/16". Max depth behind face plate is 7 7/8", Max clearance on top of face plate is 2 3/8". Equipment is mounted at 90 Deg.
Power outlet: 12 Volt 15 Amp rated power outlet (Cigarette lighter outlet type). Marine grade with protective cover.
Mounting:
OEM factory console is removed and the rear is replaced by the Tuffy Console. The Tuffy console bolts to the existing holes without drilling. Additional hardware is provided for optional added security which does not require drilling new holes. Front OEM shifter console with drink holders is still used with Tuffy console.
This 16 gauge steel rear half console provides 75% more secure storage than the plastic factory console. A special bracket is included for mounting a stereo, CB or other electronic equipment inside the lockable console. Inside the storage area there is a handy removable utility tray. Tuffy's 1/4" thick patented Pry-Guard II latching system secures the lid shut while a gas strut supports the lid when open. The 2011+ JK Rear Half Console is used in conjunction with the front half of the factory console. It includes rear drink holders, but does not replace the original factory front cup holders. The console is taller than the OEM model and features a more comfortable full length padded armrest. The console is designed to work in vehicles equipped with and without the rear power window switches. Each console accommodates all factory options such as the 12V power supply, 115V plug, and USB port. A divider is also included to gain more storage if the electronics bracket is not used. Available With Upgraded Combination Lock or original Cam Style Lock.
Made in the USA.
| Dropdown Value 1 | Original Cam Lock Only |
|---|---|
| Manufacturers Part Number | 274-01 |
| Product Name | TUFFY REAR HALF SECUR CNSL 11-UP JK |
| Depth | 13 |
| Hazmat | No |
| Length | 27 |
| Weight | 33.000000 |
| Width | 21 |
| Prop 65 Message | Warning : Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Brand | Tuffy |
| Color | Black |
| Features | Stereo Security |
| Included Parts | Console Left Front Mounting Bracket Right Front Mounting Bracket Electronics Mounting Bracket Divider Bracket Rear Window Switch Cover Rear Drink Holder Rear Window Switch Blank Cover Front Insert Plate with 115V Power Front Insert Blank without 115V Power USB Port Mounting Plate USB Port Blank Cover Plate Installation Hardware Seal Trim Wire Loom |
| Item Returns | This item can be returned |
