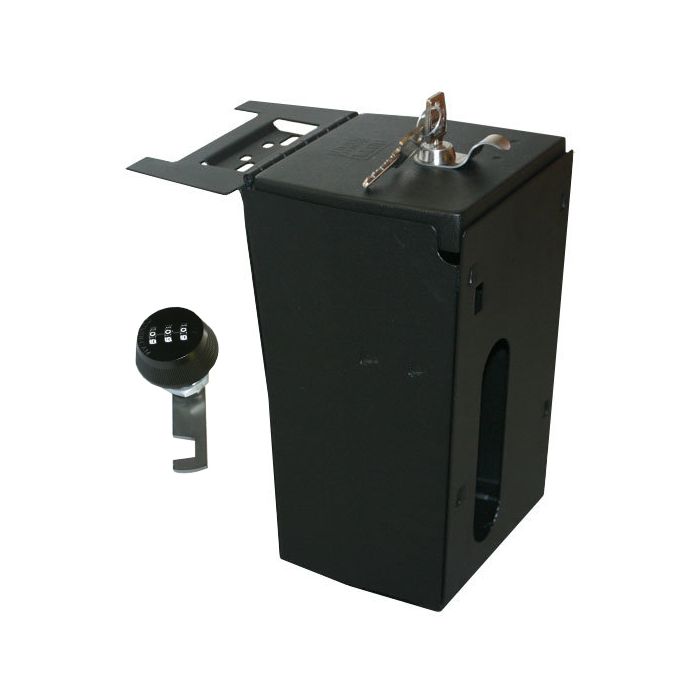

14040-0407

• Pry-Guard locking system with 10 tumbler double bitted security key
• Completely enclosed steel console is used in conjunction with the factory console shown installed
• iPod tray doubles as coin or pen tray
• Drop in console insert, reuses OEM JK inner console box and armrest
• Internal iPod and 12V power port supply holes provide access to plug ins (if vehicle equipped)
• iPod/cellphone cable routing notch in both sides align with OEM console notches
• Requires only minor disassembly of OEM console, does not replace the factory console inner box
• Lid design incorporates an exclusive Pin-Lock hinge security system with built in lid stop
• Durable texture powder coat finish
• Grade 8 mounting hardware provided


Specifications

Part #276, Colors: 01 (Plastic Factory Console not Included but shown in image for illustration)
Exterior Dimensions: 9"L x 6"W x 10 1/8"H (with mounting flange)
Interior Dimensions: 5 3/4"L(top), 4 5/8"L(bottom) x 5 7/8"W x 10"H

Mounting

OEM Factory console inner box and lid are retained. Console insert is a drop-in installation into the factory console inner box. The Tuffy insert bolts in to existing holes without drilling. Additional hardware is provided for optional security which requires drilling two holes.
