MORE RR 8.8 SWAP KIT 97-06 TJ
$479.99
In stock
SKU
12590-0252
Features of the Ford 8.8 install kit are as follows: same lug nut bolt pattern; disc brakes (95 & newer); 31 spline axle shafts; 8.8" diameter ring gear (D35 is 7.5"); 120% stronger than D35; only 20 pounds more than D35; trac-loc differential stock; and 3-1/4" diameter tubes (strong!).
You now need to find the complete rear axle assembly from a 95 or newer Ford Explorer from a salvage yard. Then, remove (torch) the Ford mounts (spring & anti-sway bar). You may also need to change the gear ratio as most Explorers have 3:73. The Ford 8.8 kit gives you the following: new, weld-on anti-wrap spring mounts, weld-on shock mounts, U-bolts and U-bolt plates.
The width is almost the same. It is 5/8" per side narrower than the D35. This is a very minor drawback and will work if you have wheels with less backspace than stock. 7/8" thick wheel spacers available. No cutting or custom fitting is needed.
Note: The Ford 8.8 install kit is not compatible with anti-lock brake equipped Jeep® vehicles!
You now need to find the complete rear axle assembly from a 95 or newer Ford Explorer from a salvage yard. Then, remove (torch) the Ford mounts (spring & anti-sway bar). You may also need to change the gear ratio as most Explorers have 3:73. The Ford 8.8 kit gives you the following: new, weld-on anti-wrap spring mounts, weld-on shock mounts, U-bolts and U-bolt plates.
The width is almost the same. It is 5/8" per side narrower than the D35. This is a very minor drawback and will work if you have wheels with less backspace than stock. 7/8" thick wheel spacers available. No cutting or custom fitting is needed.
Note: The Ford 8.8 install kit is not compatible with anti-lock brake equipped Jeep® vehicles!

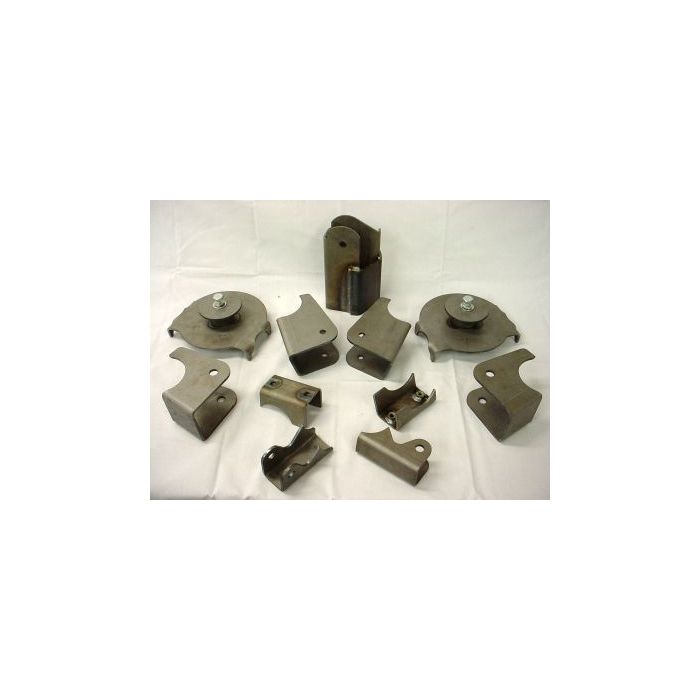

Installation Kit for 1997-2006 TJ's - No paint. This Ford 8.8 install kit includes the following items: Upper and lower control arm brackets, Coil spring seats and retainers, sway bar brackets, shock brackets and a trac bar bracket. All hardware is unpainted and requires welding.
| Dropdown Value 1 | MORE RR 8.8 SWAP KIT 97-06 TJ |
|---|---|
| Manufacturers Part Number | 98700 |
| Product Name | MORE RR 8.8 SWAP KIT 97-06 TJ |
| Depth | 7 |
| Hazmat | No |
| Length | 14 |
| Weight | 24.000000 |
| Width | 7 |
| Brand | Mountain Off-Road |
| Included Parts | Upper Control Arm Mounts Lower Control Arm Mounts Coil Spring Mounts Coil Spring Retainers Sway Bar Brackets Trac Bar Bracket Shock Brackets |
| Item Returns | This item can be returned |
