EVO RR LONG ARM UPGRADE KIT DBL TRW JK
$3,451.14
In stock
SKU
12250-0005
- Heavy duty high clearance design.
- Full on car adjustability of control arm length, no need to remove control arm to adjust.
- All bracket control arm bracketry above frame.
- Currie Johnny Joints.
- Optimum Roll Center Correction.
- Engineered to handle a true 14 of Vertical Wheel Travel.
- Tested and Proven on the Ultimate Adventure.
This is the EVO MFG High Clearance Long Arm Kit for EVOlever equipped Wrangler JK's. This system was designed to enhance the EVOlever Suspension System. With the use of this kit you can now have the ability to remove your low hanging rear control arm bracket completely as they supply a new high clearance bracket which gives 4" of additional ground clearance while maintaining ideal suspension geometry. Now with this system, EVOlever equipped vehicles can have the ultimate in strength, joint longevity, low center of gravity (COG) and bar none the highest ground clearance available by inches.
Proudly Made 100% In USA.
Proudly Made 100% In USA.

| Manufacturers Part Number | EVO-1200 |
|---|---|
| Product Name | EVO RR LONG ARM UPGRADE KIT DBL TRW JK |
| Dropdown Value 1 | EVO RR LONG ARM UPGRADE KIT DBL TRW JK |
| Prop 65 Message | WARNING: This product can expose you to chemicals including silica, crystalline which is known to the State of California to cause cancer. For more information, go to www.P65Warning.ca.gov. |
| Length | 120 |
| Width | 27 |
| Depth | 27 |
| Weight | 181.000000 |
| Hazmat | No |
| Brand | EVO Manufacturing |
| Control Arm Type | Lower Control Arms, Upper Control Arms |
| Features | Long Arm |

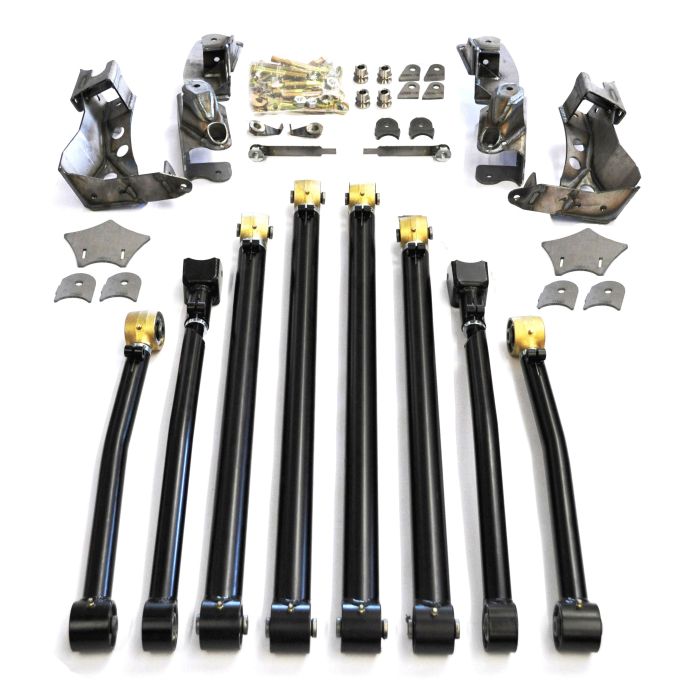

| Included Parts | 2 31" Front Lower Control Arm Steel Tube 2 27" Rear Lower Control Arm Steel Tube 1 Passenger Side Rear Upper Control Arm 1 Driver Side Rear Upper Control Arm 1 Passenger Side Front Upper Control Arm 1 Driver Side Front Upper Control Arm 1 Driver Side Rear Long Arm Bracket 1 Passenger Side Rear Long Arm Bracket 1 Driver Side Front Long Arm Bracket 1 Passenger Side Front Long Arm Bracket 1 3 Degree Axle Mount 4 Cantilever Subframe Shock Mounts 4 Misalignment Spacers Installation Hardware |
| Lift Height | 4.5, 4.50 |
| Lift Height Range | 3 - 4.5 inch |
| Location | Front, Rear |
| Item Returns | This item can be returned |
