EVO JK RR DBL THROWDOWN LEVER KIT
$6,378.81
In stock
SKU
12250-0000
- Allows the uses of long travel coilover and external bypass shocks in the rear of your JK without the need for doing any major cutting.
- Absolutely no cutting of the body.
- Offers up to 14 of vertical wheel travel.
- Optimizes Short Arm and Long Arm suspension system, from every manufacturer without modification. (Rancho Long Arm/Rock Krawler needs modification)
- Offers the maximum amount of ground clearance with 14" travel. All key components fully protected and above axle at all times.
- Adjustable ride height.
- Four Ply limit strap included
- 3/4"chromoly heim joints.
- Stainless steel misalignments.
- Grade 8 hardware
- Allows for use of 35 up to 42 tires (Larger than 37", Body Trimming required)
The rear EVO MFG Double ThrowDown System is engineered for the Jeep owners who like to go fast. This system utilizes a coilover just like EVO MFG's EVOlever and has all the same added benefits, as well as an additional bypass shock each corner. With the addition of a bypass shock you have full external adjustability of the damping and "zones" within the shock stroke that allow the system to be position sensitive. This system gives you 14" of positions sensitive damping without the need for cutting holes in the body of your Jeep.
EVO MFG is now shipping the rear EVOlever and Double ThrowDown sub frames with the bushing and pivot points preassembled and lubricated .This simple process will help ease the install and insure proper set up of the pivot points. Now the installer will be able to install this product faster which means you can enjoy all these great benefits of the EVOlever sooner.
Proudly Made 100% In USA.
Proudly Made 100% In USA.
| Manufacturers Part Number | EVO-1008 |
|---|---|
| Product Name | EVO JK RR DBL THROWDOWN LEVER KIT |
| Dropdown Value 1 | EVO JK RR DBL THROWDOWN LEVER KIT |
| Prop 65 Message | WARNING: This product can expose you to chemicals including silica, crystalline which is known to the State of California to cause cancer. For more information, go to www.P65Warning.ca.gov. |
| Length | 81 |
| Width | 37 |
| Depth | 22 |
| Weight | 182.000000 |
| Hazmat | No |
| Brand | EVO Manufacturing |
| Features | Coil Over |

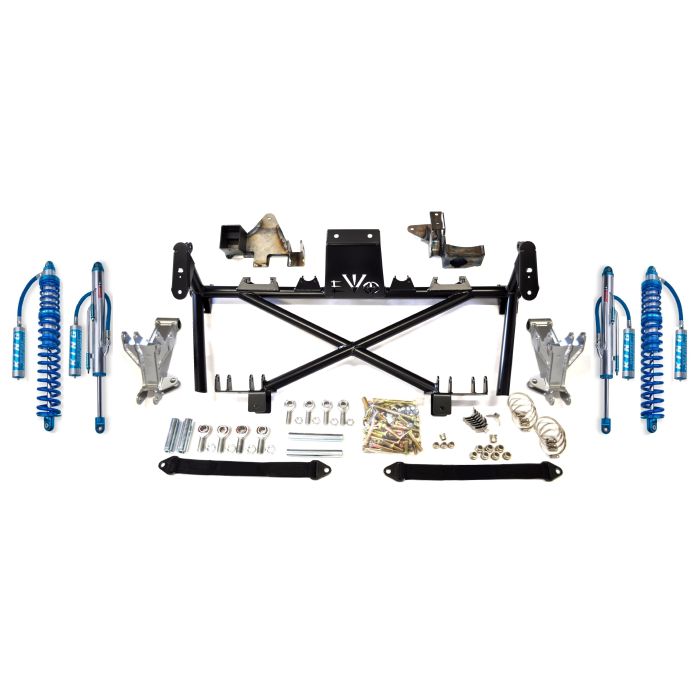

| Included Parts | 1 Driver Side Double ThrowDown Arm 1 Passenger Side Double ThrowDown Arm 1 DTD EVOlever Subframe 2 King Coilover Shocks 2 King Bypass Shocks 1 Canti Track Bracket 1 Driver Side Heim Mount Bracket 1 EVOlever Frame Side Trackbar Relocation Bracket 2 Cantilever Arm End Link Tubes 2 3/4" Male RH Heim Joints 2 3/4" Male LH Heim Joints 2 3/4" Right Hand Hex Jam Nuts 2 3/4" Left Hand Hex Jam Nuts 8 3/4" Misalignment Spacers 8 Hose Clamps 8 Tabs 2 20" Limit Straps 2 Cross Braces in Clear Zinc 4 5/8" Misalignment Spacers 4 5/8" Male RH Heim Joints 4 5/8" Right Hand Hex Jam Nuts 4 Cantilever Bushings Installation Hardware |
| Max Tire Size | 42 |
| Shocks Included | With Shocks |
| Item Returns | This item can be returned |
