12057-0200

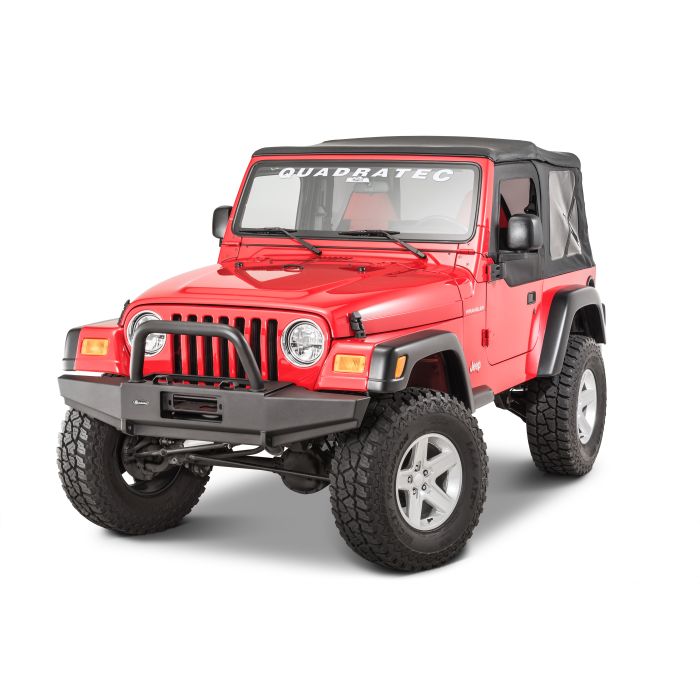

Quadratec’s Winch Ready Bull Bar Bumpers feature a fully welded one piece steel construction using 4 mm thick steel plate and a 3” diameter mandrel bent grill guard hoop that’s removable. Our aggressively styled Winch Ready Bull Bar Bumpers measure 61.5” wide and bolt directly to the vehicle’s existing mounting points and feature fully integrated 6 mm thick steel winch plates. Winch plates accept all popular winch brands and there’s no drilling or modifications required.
Our Winch Bumpers are e-coated for corrosion resistance and finished with an attractive and durable black textured powder coating. Bumpers are available with or without JK style factory fog light provisions and can be upgraded to our high performance plug-n-play LED fog lamps, sold separately. The Quadratec Winch Ready Bull Bar can be used with or without the included grill guard hoop. Additional features include welded light mount tabs and 1” thick D-Ring tabs for 3/4” D-Rings with 7/8” pins. D-Rings available separately. Installation is simple with our included hardware pack and detailed instructions. Three Year Limited Warranty.
Quadratec Front Bumper Specifications:
- Integrated Winch Plate
- 3" Diameter Grill Guard Hoop
- E-Coated for Corrosion Resistance
- Black Textured Powder Coat Finish
- Welded D-Ring Mounts
- Available With or Without Fog Light Provisions
- Three Year Limited Warranty
Quadratec Q9000 Winch Specifications (option):
- Rated Line Pill (single Line) - 9000 lbs
- Mounting Bolt Pattern - 10” x 4.5” (254mm x 114.3mm)
- Motor (Series Wound): 12 Volt / 4.8 Hp
- 100' x 3/8" Aircraft Steel Cable w/ Forged Steel Clevis Hook
- Zinc Plated Roller Fairlead & Nylon Safety Hook Strap
- High Visibility Rubberized Winch Remote with 12' Cord
- Remote Solenoid Box - Can be mounted in the center or on the side
Winch Ready Design: This strong winch plate is made from a 6mm thick steel plate and completely integrated inside the bumper. It comes pre-drilled with a standard 10" x 4.5" bolt pattern accepting most winches up to 10,000 lbs. This winch plate will allow you to add much needed recovery to the front of your Jeep Wrangler TJ or Unlimited LJ.
Versatile Grille Guard Hoop: The removable over rider hoop allows you to customize the look of your Jeep Wrangler TJ or Unlimited LJ. You can install this stout grille guard to protect your winch and Jeep grille or you can remove it for a clean low-profile style. No matter what you decide it can be easily installed or uninstalled with 2 bolts.
Integrated Recovery Points: The integrated d-ring mounts are made from 1" thick steel for safe recovery. Accepting 3/4" D-Rings using a 7/8" pin size giving your Jeep a bold aggressive look with multiple recovery points for all your trail riding adventures (D-Rings are sold separate).
Simple No Drill Installation: This bumper is a direct bolt on installation that does not require any drilling or modification. This easy installation is for the do it yourself installer that can be done with basic hand tools.
| Manufacturers Part Number | 12057 0200 |
|---|---|
| Product Name | 12057-0200 |
| Dropdown Value 1 | 97-06 without Fog Light Provisions |
| Dropdown Value 2 | Without Winch |
| Length | 64 |
| Width | 16 |
| Depth | 16 |
| Weight | 135.000000 |
| Hazmat | No |
| Brand | Quadratec |
| Color | Black |
| Features | D Rings, Grille Guard, Integrated Fog Light Mounts, Integrated Winch Mount, Steel |
| Included Parts |
|
| Material | Steel |
| Style | Full Width Bumper |
| Item Returns | This item can be returned |
